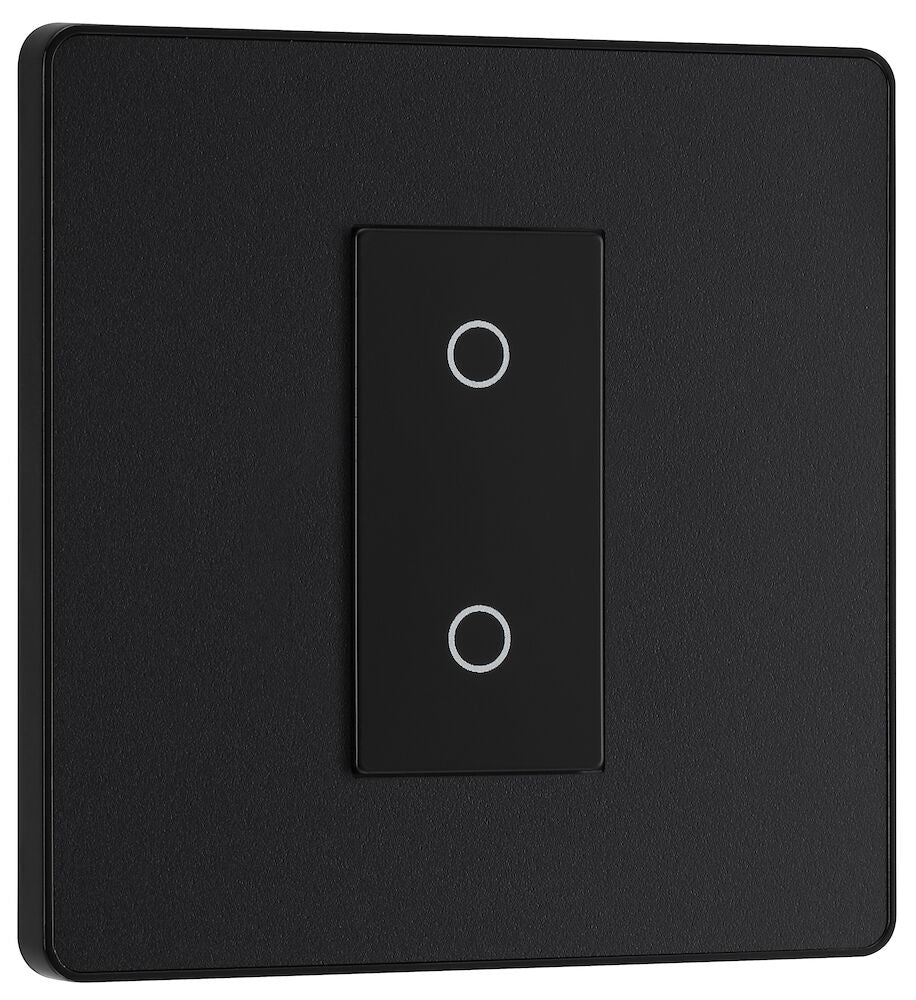

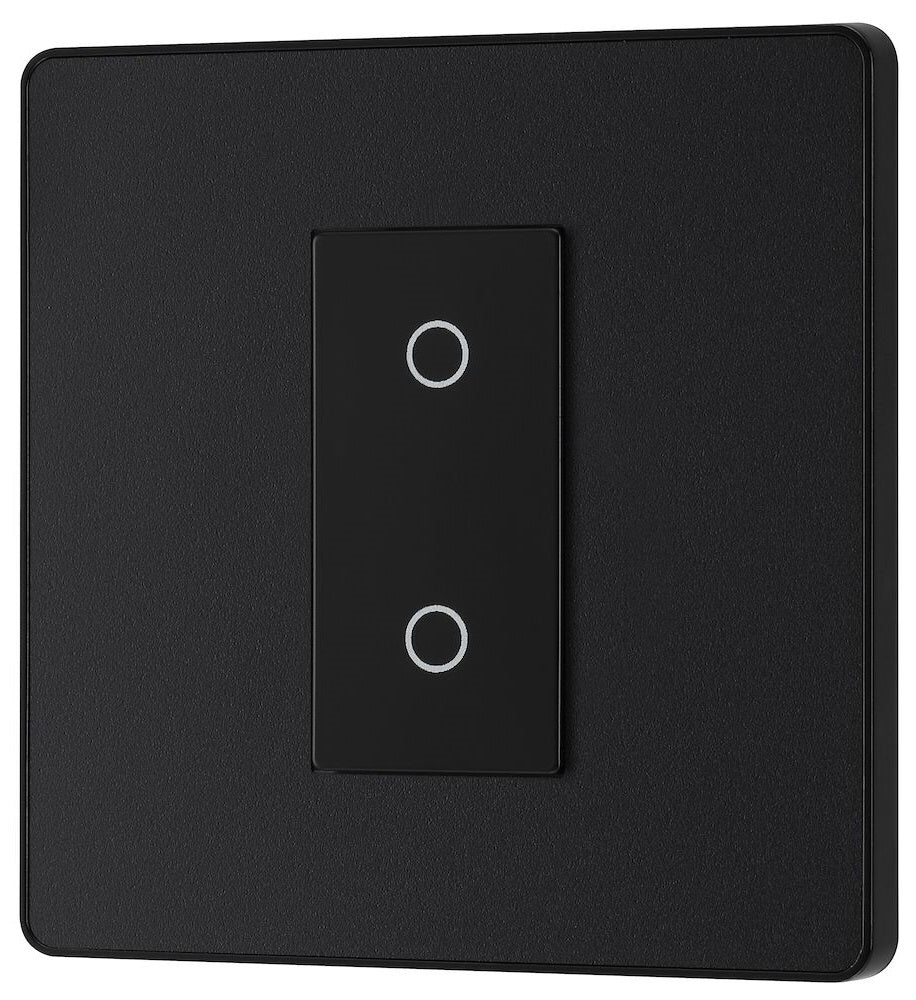

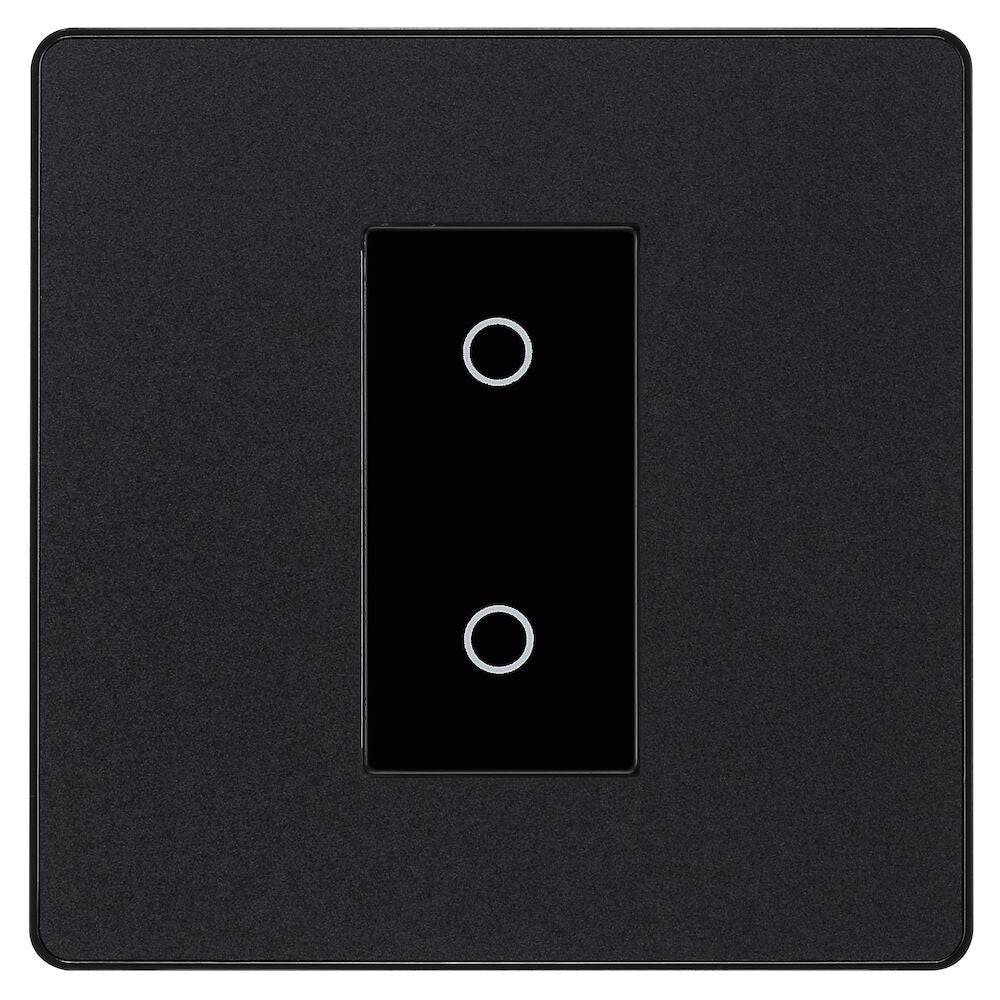

Evolve Polycarbonate Matt Black Single Secondary Touch Dimmer Switch PCDMBTDS1B

By BG Electrical
£7.59 GBP
Minus Plus
View Full Range
The PCDMBTDS1B is a 1G secondary touch dimmer switch from the BG Evolve range, finished in matt black. The newest decorative collection from BG, the Evolve range is constructed from a lightweight, polycarbonate material, with a slim profile and a contrast edging.
Product Spec & Measurements

Single Touch Dimmer Switch
2 Way Secondary Switch
To be used in conjunction with a Master Touch Dimmer Switch
Trailing Edge
Touch dimmer control
Silent operation - no noise when dimming
Support for lower wattage lamps eliminates flicker
Minimum Mounting Box Depth 25mm
Dimensions - 86 x 86 x 5mm
Brand - British General Electrical
Plate Projection 5mm
Matt Black with a Black Frame
Matt Finish
Material: Polycarbonate
Certified to BS EN 60669-2-1

Load Rating (Max/Min per module)
Dimmable LED 5-100W
Tungsten/Incandescent 5-200W
Halogen 20-200W
Dimmable Compact Fluorescent (CFL) 5-100W

Installation Note
A Master can only be used in a one way switching circuit where one switch controls a light (or circuit) i.e. on or off.
For two way switching, where a light (or circuit) is controlled by two switches, the master touch dimmer must be used with a secondary touch dimmer at the secondary location.
A master touch dimmer cannot be used in combination with a traditional light switch or any other dimmer switch.
